High-Performance Current Vector VFD | 180% Torque at 0.5Hz & 0Hz | 0.02% Accuracy | 0.75-560kW AC Drive

The VDN200 Series is a flagship high-performance current vector inverter, engineered to deliver exceptional speed and torque control accuracy to meet the most demanding industrial requirements. Utilizing the latest generation of TI high-speed motor control DSPs on an innovative three-core processing platform, it ensures ultra-fast computation for complex vector algorithms. Whether for precision machining or heavy-duty material handling, the VDN200 provides unparalleled dynamic response, robust overload capability, and reliable operation in harsh environments.

Installation Type:

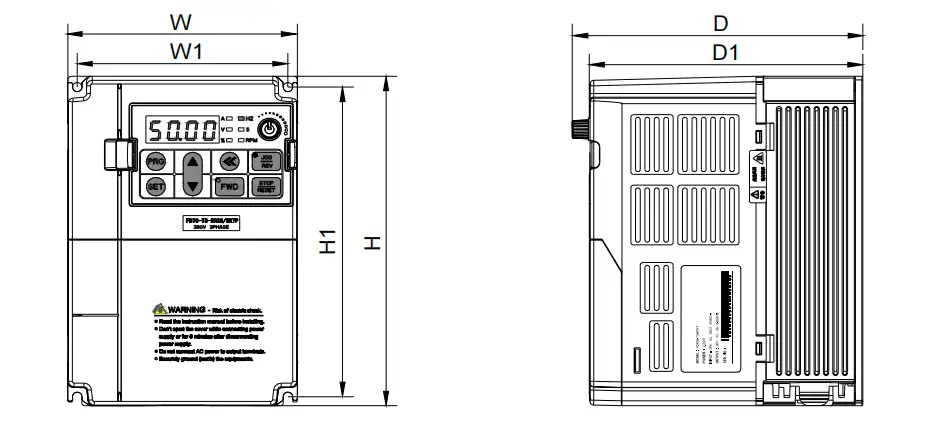

Plastic casing

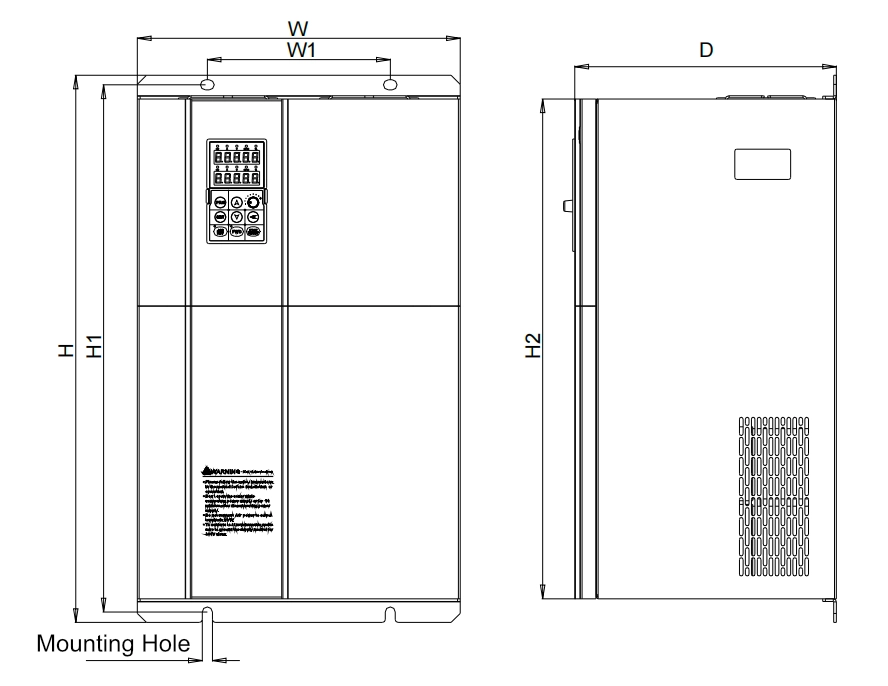

Wall-mounted

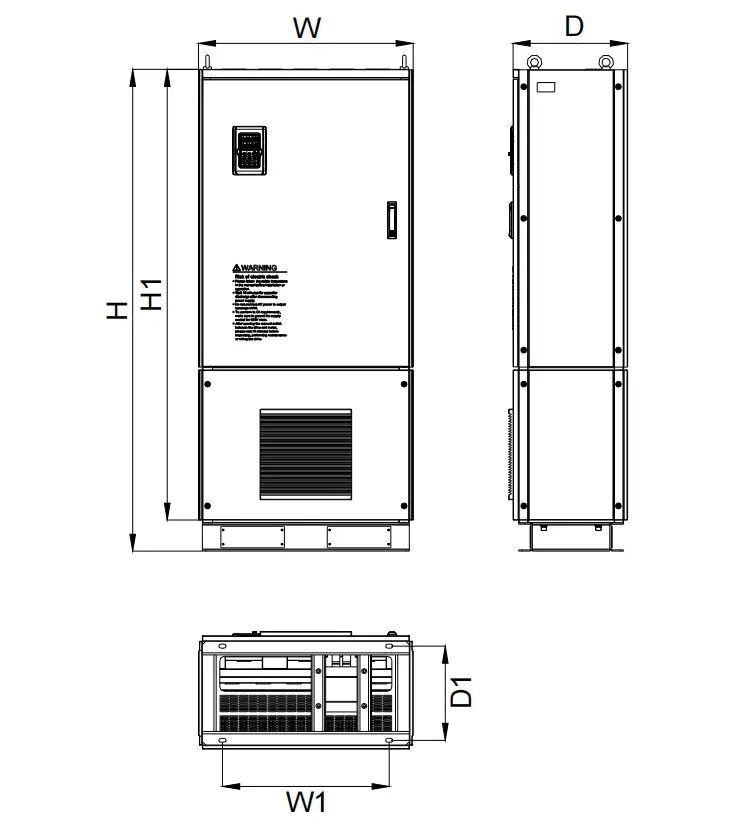

Cabinet Mounting

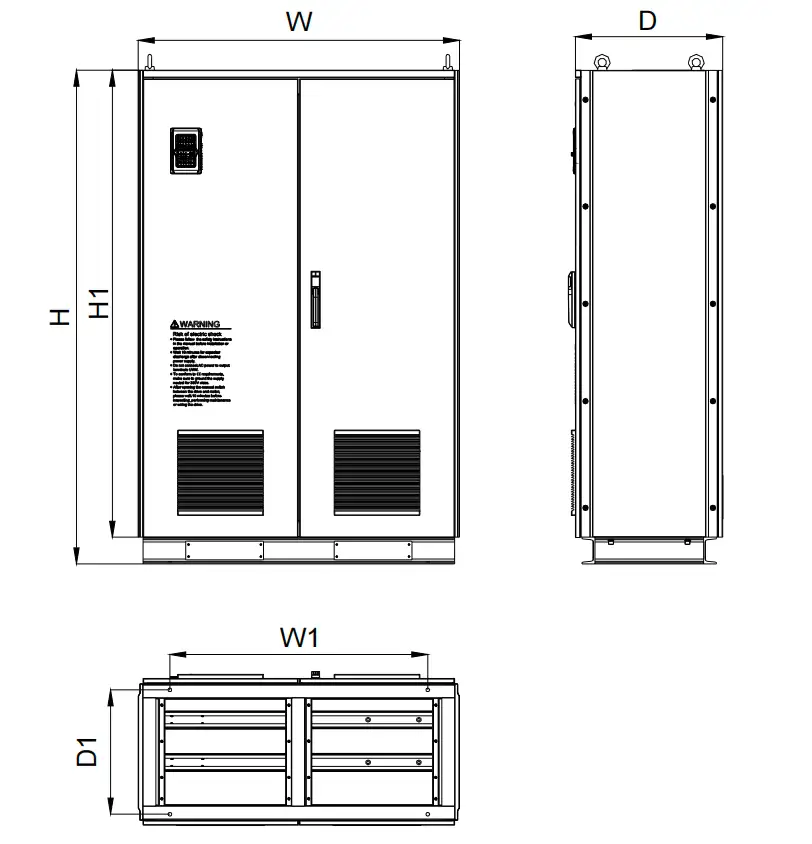

Chassis Mounting
Tags:
* Current Vector Inverter
* High-Performance VFD
* Infineon IGBT VFD
* Zero Servo Control VFD
Documentos:
CONTACT US

Key technical parameter

ItemParameter
Power Range:
3-Phase 380V: 0.75kW – 560kW
Input Voltage:
Three-Phase 380V: -15% ~ +15%, 50/60Hz
Protection Level:
IP20 (Standard)
Control Model:
Sensorless Vector Control (SVC) ,
PG Vector Control (FVC) ,
V/F Control, Torque Control
Overload Capacity:
G-Type: 180% for a short period (typical for high-performance vector)
Starting Torque:
SVC: 180% rated torque at 0.5Hz
FVC: 180% rated torque at 0Hz (Zero-Servo control)
Braking Unit:
Built-in (Models up to a certain power, external for higher)
Communication:
vfd Communication
Protection:
Comprehensive: Over-current, Over-voltage, Under-voltage,
Overload, Stall prevention, Phase Loss, Short-circuit, Overheat, etc.

Our advantage

Ultra-High Performance Vector Control
Utilizes a next-gen TI DSP with an innovative three-core processing platform for ultra-fast computation, enabling complete and complex vector control algorithms for unmatched motor performance.
Exceptional Low-Speed Torque (SVC)
Delivers a massive 180% starting torque at just 0.5Hz in sensorless vector mode. This ensures powerful startups for high-inertia loads like crushers, mixers, and heavy conveyors without needing an encoder.
Precision PG Vector Control (FVC)
With an optional PG card, achieves 180% torque at 0Hz (Zero-Servo), 0.02% speed accuracy, and <10ms dynamic response. Ideal for applications demanding the highest precision, such as machine tool spindles, hoists, and positioning systems.
Robust Reliability for Harsh Environments
All standard products undergo conformal coating (three-proofing) treatment to protect against moisture, dust, and corrosion. Enhanced protective measures are available for extreme environments, ensuring long-term stability.
Advanced Protection & Adaptability
Features comprehensive over-current, over-voltage, and overload suppression with stall prevention. A wide voltage range design and perfect self-diagnostic functions, combined with new-generation Infineon IGBT modules, guarantee high reliability and grid adaptability.
Flexible Torque & Speed Control
Supports on-line switching between torque and speed control in closed-loop mode, providing ultimate flexibility for complex applications like tension control or winding/unwinding systems.
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables
WP Data Tables

HUAKIA VFD Series: Frequently Asked Questions (FAQ)

This FAQ provides answers to common questions about HUAKIA's VDN series Variable Frequency Drives (VFDs), covering models VDN100, VDN200, VDN300, VDN500, VDN700, and VDN900. This guide is optimized for users seeking reliable motor control solutions.

A Variable Frequency Drive (VFD) controls the speed and torque of an AC induction motor by varying the frequency and voltage of its power supply. HUAKIA’s VDN series VFDs are designed for high performance and reliability across various industries, including textile, paper making, wire drawing, machine tools, packaging, food processing, fans, and pumps. Our drives feature advanced vector control technology, providing excellent low-speed torque, fast dynamic response, and robust overload protection for demanding automation applications.

To select the right VFD, you must match the drive’s output current and power rating (kW) to your motor’s full load current and power. First, check your motor’s nameplate for its rated voltage (e.g., 380V), current (Amps), and power (kW). Then, refer to the “Rated Output Current” table in our manuals (e.g., for VDN500/700/900). Choose a VFD model (G-type for constant torque loads like conveyors, or P-type for variable torque loads like fans and pumps) whose rated output current is equal to or greater than your motor’s rated current. For high-starting torque loads (e.g., hoists, extruders), select a G-type model and consider oversizing the VFD by one power level.

The HUAKIA VDN series offers versatile control modes to suit different performance needs:

  • V/F Control (Voltage/Frequency): Suitable for basic speed control, multi-motor applications, or when motor parameters are unknown (e.g., VDN100, VDN200).

  • Sensorless Vector Control (SVC): Provides high starting torque (up to 150% at 0.5Hz) and good speed accuracy without an encoder. Ideal for most general-purpose high-performance applications (e.g., VDN700, VDN900).

  • Closed-Loop Vector Control (FVC): Requires an encoder (PG card) on the motor. Offers zero-speed full torque, the highest speed accuracy (±0.02%), and precise torque control for demanding applications like hoisting and elevators (e.g., VDN500, VDN900).

Auto-tuning is critical for optimal vector control performance. The process is:

  1. Correctly set the motor’s nameplate parameters (rated power, voltage, current, frequency, speed) in the P1 group (or similar) of the VFD parameters.

  2. For Static Tuning (motor shaft cannot be uncoupled), set the tuning parameter (e.g., P1-37=1 for VDN500/700, H-62=2 for VDN300) to measure stator and rotor resistance.

  3. For Dynamic Tuning (best performance, uncouple motor from load), set the tuning parameter (e.g., P1-37=2) to measure all motor parameters.

  4. After setting the parameter, press the RUN key on the VFD’s keyboard. The drive will perform the measurement and stop automatically. The motor will run briefly during dynamic tuning.

Overcurrent (OC) and overvoltage (OV) are common faults often caused by incorrect parameter settings.

  • Overcurrent (OC) fault: Usually occurs during acceleration or heavy load. Solution: Increase the acceleration time (e.g., P0-17), decrease the torque boost value (e.g., E04.01 for VDN900), or check for mechanical blockages.

  • Overvoltage (OV) fault: Often happens during deceleration due to load inertia generating energy back to the VFD. Solution: Increase the deceleration time (e.g., P0-18), enable the overvoltage stall protection (e.g., P3-23=1 for VDN500), or add a braking resistor/unit. For a comprehensive guide, refer to the ‘Fault Diagnosis’ chapter in your specific model’s manual.

No, you cannot. The VDN series (e.g., VDN100-300, VDN500-900) three-phase models are designed specifically for three-phase power input. Connecting them to a single-phase supply will cause a fault and potentially damage the drive. If you only have single-phase power, you must purchase a model specifically designed for single-phase input, typically available for smaller power ratings (e.g., VDN100-S2 series for 220V single-phase).

To ensure long life and reliable operation, regular maintenance is key.

  • Daily: Check the ambient temperature, unusual motor noise/vibration, and cooling fan operation.

  • Every 3-6 months: Inspect for loose terminals, dust buildup on the heatsink, and corrosion. Clean the VFD with compressed air. Tighten all power terminals to the specified torque.

  • Every 2-3 years: The cooling fans may need replacement as they are mechanical wear parts.

  • Every 4-5 years: The main circuit DC bus capacitors should be checked, and their usable life is typically 4-5 years depending on ambient temperature and load.

The VDN series drives are designed for easy integration into industrial automation systems. They support multiple communication protocols via optional plug-in cards:

  • Standard: Modbus RTU (RS485) is available on most models like VDN100, VDN200, VDN300, and VDN500.

  • Optional: Via dedicated expansion cards, the VDN series can support Profibus-DP, CANlink, and CANopen for more advanced fieldbus requirements.

Standard VFD operation is specified for altitudes up to 1000m (about 3280 feet). If you install a VDN series VFD at a higher altitude, the air is thinner, which reduces the drive’s cooling capacity.

  • Derating: You must “derate” the VFD, meaning you must reduce the output current to prevent overheating. A common rule (for VDN100, VDN700) is to reduce the rated output current by 1% for every 100m above 1000m. The maximum recommended altitude for standard models is typically 3000m. Please consult the specific manual or HUAKIA support for precise derating factors.

HUAKIA provides a standard 18-month warranty from the date of manufacture (as indicated by the product serial number) for all VDN series VFDs. This warranty covers repair or replacement of the product if the failure is due to confirmed manufacturing defects or component failure under normal operating conditions. The warranty does not cover damage caused by improper installation, misuse, overloading, or external factors like fire, flood, or lightning.
